DN-81630 | DIGITUS
Optical transceiver module, 100 Gbs, 2 km, SR4, singlemode, silver, DN-81630
Order No.: 73F9149
EAN: 4016032480891
MPN:
DN-81630
Unit Price (€ / pc.)
397.0078 € *
Available: 0 pcs.
Available in 7 Days: 2 pcs.
Leadtime: On Request **

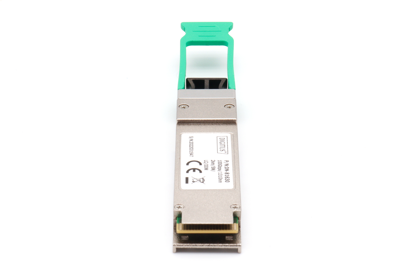

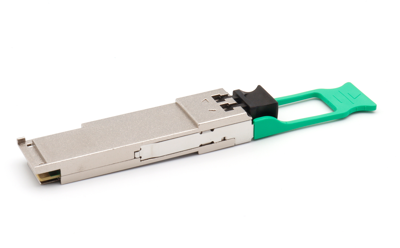

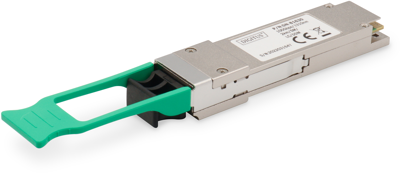

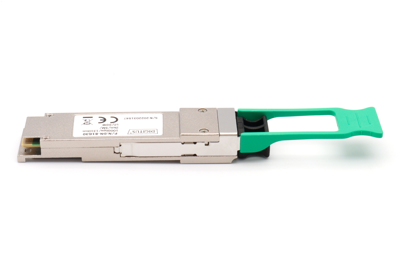

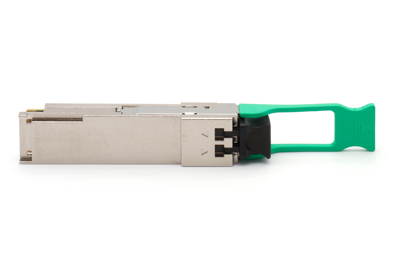

Transceiver module, DN-81630, DIGITUS
The DN-81630 is a Four-Channel, pluggable, parallel, Fiber-Optic QSFP28 Transceiver for IEEE 802.3bm, 100GBASE SR4 applications or 40 Gigabit Ethernet and Infiniband FDR/EDR applications. The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 26Gbps operation for an aggregate data rate of 104Gbps 70m using OM3 fiber. This module is designed to operate over multimode fiber systems using 850nm VCSEL laser array.
Features
- RoHS 6 compliant
- Hot Pluggable QSFP form factor
- Built-in digital diagnostic function
Technical specifications
| Connection | plug-in connection | |
| Version | optical transceiver module, 100 Gbs, 2 km | |
| Colour | silver | |
| Chamfer type | singlemode | |
| Category | SR4 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85176200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
