DN-81631 | DIGITUS
Optical transceiver module, SR4, multimode, silver, DN-81631
Order No.: 73F9150
EAN: 4016032483427
MPN:
DN-81631
Unit Price (€ / pc.)
105.5173 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

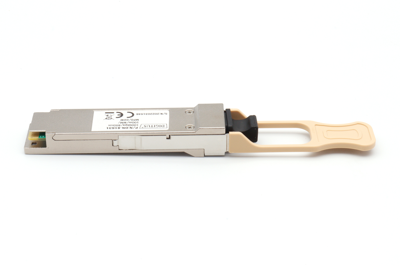

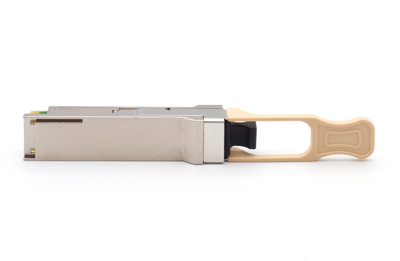

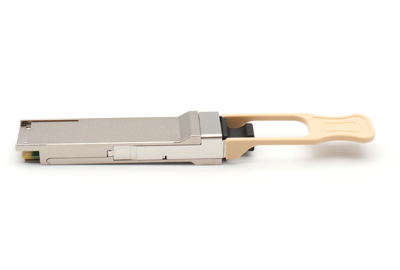

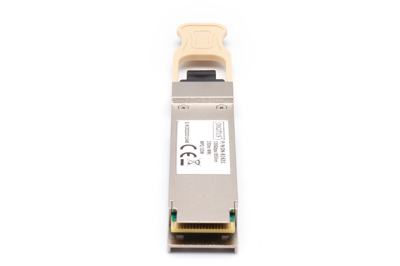

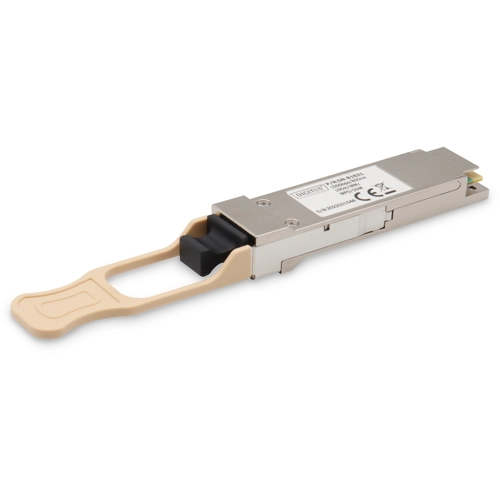

Transceiver module, DN-81631, DIGITUS
The DN-81631 is a Four-Channel, pluggable, parallel, Fiber-Optic QSFP28 Transceiver for IEEE 802.3bm, 100GBASE SR4 applications or 40 Gigabit Ethernet and Infiniband FDR/EDR applications. The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 26Gbps operation for an aggregate data rate of 104Gbps 70m using OM3 fiber. This module is designed to operate over multimode fiber systems using 850nm VCSEL laser array.
Features
- RoHS 6 compliant
- Hot Pluggable QSFP form factor
- Built-in digital diagnostic function
Technical specifications
| Connection | Steckanschluss | |
| Version | Optisches Transceivermodul | |
| Colour | silber | |
| Chamfer type | Multimode | |
| Category | SR4 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85176200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
