DN-10136 | DIGITUS

Order No.: 12M865
EAN: 4016032487968
MPN:
DN-10136

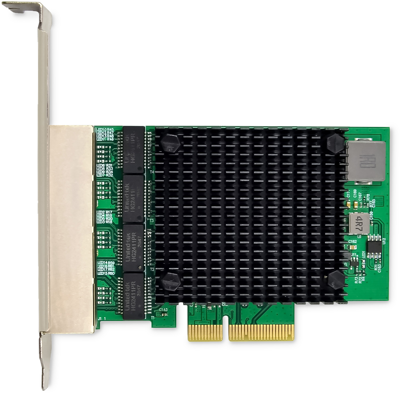

DN-10136 DIGITUS Network Interface Cards Image 1

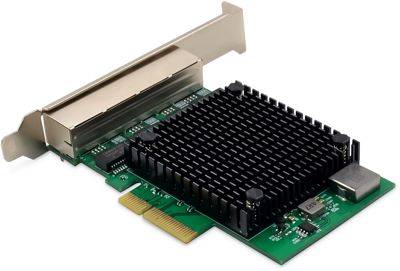

DN-10136 DIGITUS Network Interface Cards Image 2

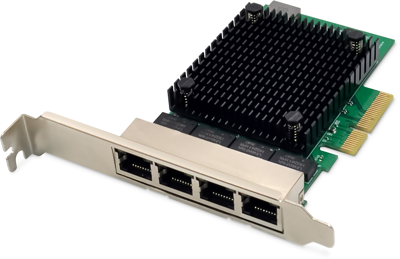

DN-10136 DIGITUS Network Interface Cards Image 3

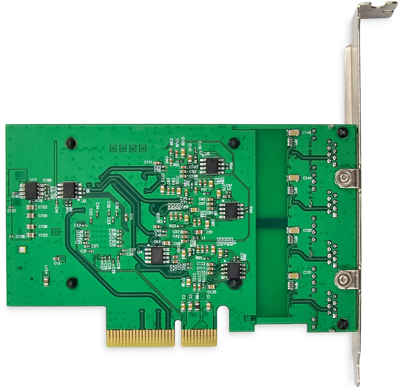

DN-10136 DIGITUS Network Interface Cards Image 4
Image may differ
Unit Price (€ / pc.)
91.6657 € *
Available: 0 pcs.
Available in 7 Days: 273 pcs.
Leadtime: 7 Weeks **
Total Price:
91.67 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
91.6657 €

Ethernet network card, DN-10136, DIGITUS

The DN-10136 PCIe Quad-Port 2.5G network adapter is realized by the combination of multiple chips, it is combines a four-speed IEEE802.3 compatible Media Access controller with a four-speed Ethernet transceiver, it is complies with the IEEE802.3u specification for 10/100Mbps Ethernet ,the IEEE802.3ab specification for 1000Mbps Ethernet and IEEE802.3bz specification for 2500 Mbps Ethernet. Also it offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP(10Mbps only)cable .It is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications.

Features

  • Integrated 10M BASE-Te and 100/1000M/2.5G base-T 802.3 compatible transceiver
  • Auto-Negotiation with Extended Next Page capability(XNP)
  • Supports pair swap/polarity/skew correction
  • Crossover Detection and Auto-Correction
  • Transmit/Receive on-chip buffer support
Logistics
Country of origin CN
Customs tariff number 84718000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
