DK-1617-0025/R | DIGITUS

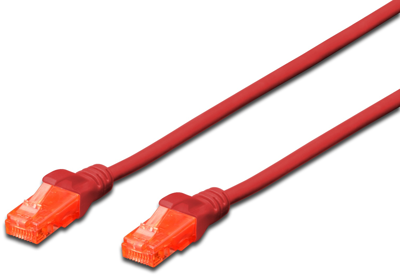

Patch cable, RJ45 plug, straight to RJ45 plug, straight, Cat 6, U/UTP, LSZH, 0.25 m, red, DK-1617-0025/R
Order No.: 98F9035
EAN: 4016032387572
MPN:
DK-1617-0025/R
Unit Price (€ / pc.)
1.3447 € *
Available: 0 pcs.
Available in 7 Days: 63 pcs.
Leadtime: 11 Weeks **
Total Price:
1.34 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3447 €
10 pcs.
1.2257 €
50 pcs.
1.1662 €
100 pcs.
1.0829 €
500 pcs.
1.0234 €
*incl. VAT plus shipping costs
**Subject to prior sale
Patch cord, DK-1617-0025/R, DIGITUS
This patch cord is manufactured and tested to the ISO/IEC 11801 and DIN EN 50173 Category 6 specifications. They will guarantee the installed cabling system is compliant with the ISO & EN channel specification requirements and will provide optimum performance levels of Category 6 cabling. This product is designed and produced to fulfill the highest requirements of various application areas in full volume. The cable is fitted with a molded boot which comes with kink protection and strain relief. Furthermore the boot is equipped with a latch protection that prevents the latching lever against breaking.
Features
- With LSZH (Low Smoke Zero Halogen) sheath for best fire behaviour and low smoke emissions
- Transparent red colored plug for easy identification
- Conductor: Copper (Cu)
- PoE+ ready
Technical specifications
| Connection (1) | RJ45 plug, straight | |
| Connection (2) | RJ45 plug, straight | |
| Version | patch cable | |
| AWG cross-section | AWG 26-7 | |
| Colour | red | |
| Halogen free | Yes | |
| Cable type | U/UTP | |
| Cable length | 0.25 m | |
| Category | Cat 6 | |
| Material | LSZH | |
| Pin configuration | 1:1 | |
| Detent lever protection available | Yes |
Download
Logistics
| Customs tariff number | 85444210 |
| Original Packaging | Bag with 1 piece |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
