DN-19 09U-6/6-EC-SW | DIGITUS

Wall enclosure, 9 U, (H x W x D) 478 x 600 x 600 mm, IP20, sheet steel, black, DN-19 09U-6/6-EC-SW

Order No.: 98F690
EAN: 4016032257806
MPN:
DN-19 09U-6/6-EC-SW

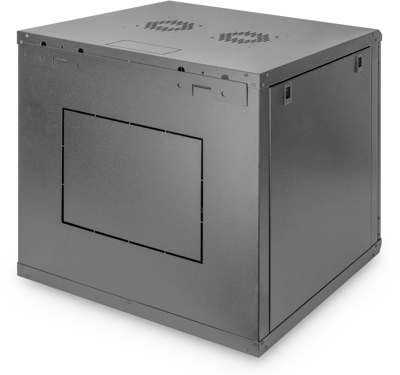

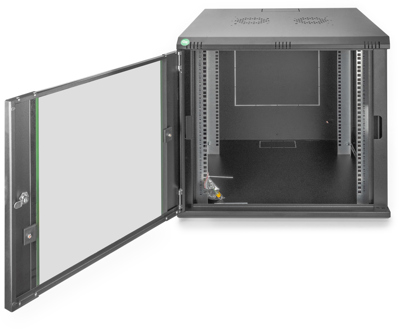

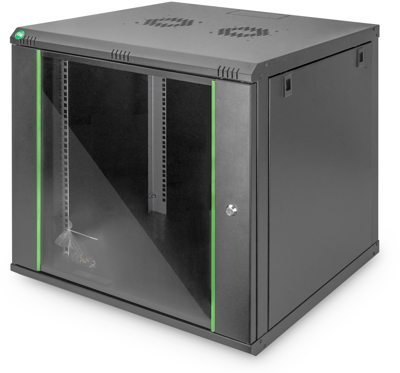

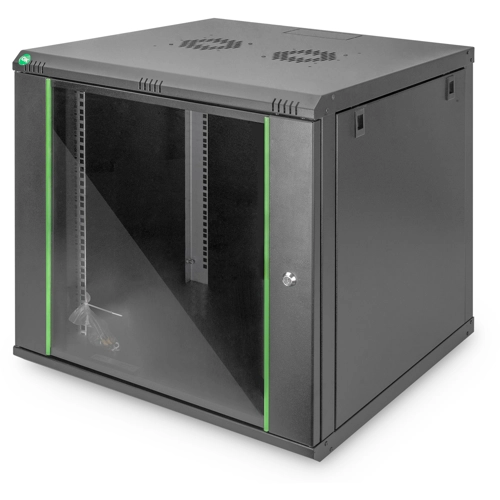

DN-19 09U-6/6-EC-SW DIGITUS Switch Cabinets, server cabinets Image 1

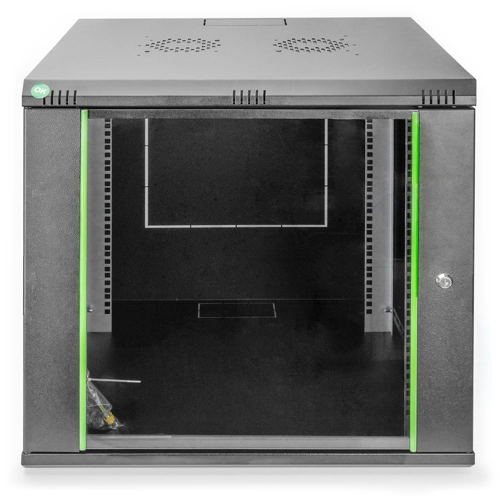

DN-19 09U-6/6-EC-SW DIGITUS Switch Cabinets, server cabinets Image 2

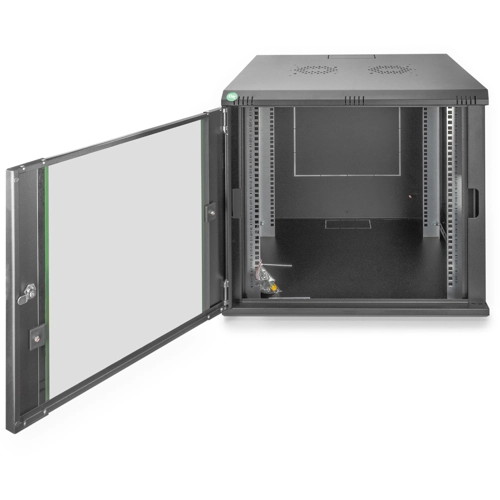

DN-19 09U-6/6-EC-SW DIGITUS Switch Cabinets, server cabinets Image 3

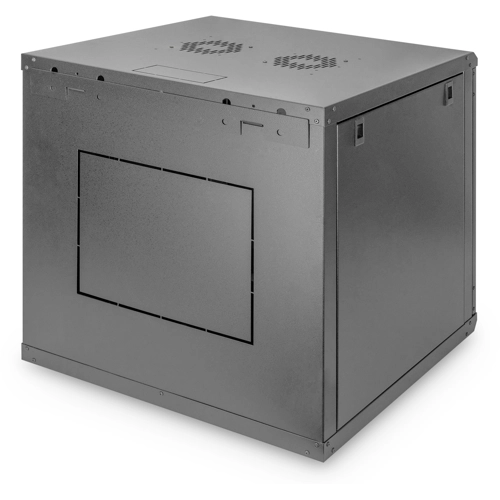

DN-19 09U-6/6-EC-SW DIGITUS Switch Cabinets, server cabinets Image 4
Image may differ
Unit Price (€ / pc.)
189.3052 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
189.31 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
189.3052 €

Wall-mounted housing, DN-19 09U-6/6-EC-SW, DIGITUS

The network cabinet for wall installation was developed for easy and especially cost-optimized network expansion. The roof, floor and back wall of each cabinet are equipped with a pre-cut cable inlet. To accommodate a fan module, the roof structure is also equipped with a pre-cut area. Two pairs of galvanized 483 mm (19”) profile rails labeled with rack units readable in both directions are installed on the inside. Their depth can be adjusted. The cabinet is made of up to 1.5 mm thick sheet steel.

Removable side walls as well as lockable and removable front door improve accessibility. The door hinges can be switched. Wall installation is accomplished in two easy work steps: The mounting plate provided is bolted on the wall and then connected with the housing.

Features

  • Optimized air ventilation and exhaustion
  • Lockable glass door ensures safety
  • 483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized
Technical specifications
Version 9 HE
Width 600 mm
Colour schwarz
Height 478 mm
Material Stahlblech
Product type Wandgehäuse
Degree of protection (IP) IP20
Depth 600 mm
Logistics
Country of origin CN
Customs tariff number 94032080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
