BC857B-7-F | Diodes

Name: Bipolar junction transistor, PNP, -100 mA, -45 V, SMD, SOT-23, BC857B-7-F
Brand: Diodes
SKU: 12S6285
Price: 0.06 EUR
Availability: InStock

Bipolar junction transistor, PNP, -100 mA, -45 V, SMD, SOT-23, BC857B-7-F

Order No.: 12S6285

EAN: 4099879027375

MPN:

BC857B-7-F

Series: BC8

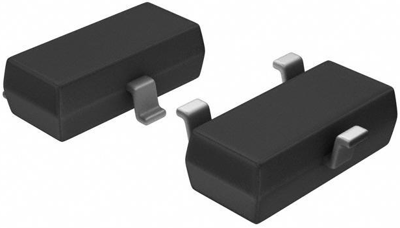

Image may differ

Key Specification:

Montage SMD

Gehäuse SOT-23

Ausführung PNP

Sättigungsspannung -650 mV

Kollektorstrom -100 mA

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.0607 € *

Available: 2,445 pcs.

Leadtime: On Request **

Total Price:

0.06 € *

Price list

Quantity

Price per unit*

1 pcs.

0.0607 €

10 pcs.

0.0440 €

100 pcs.

0.0369 €

500 pcs.

0.0321 €

1000 pcs.

0.0298 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

PNP transistor, BC857B, DIODES

PNP small signal transistor in SOT23 case. It is ideally suited for automatic insertion, switching and AF Amplifier applications.

Features

Halogen and antimony free
RoHS Compliant

Technical specifications

	Ausführung	PNP
	Gehäuse	SOT-23
	max. Temperatur	150 °C
	max.Spannung zwischen Kollektor und Basis Vcbo	-50 V
	max.Spannung zwischen Kollektor und Emitter Vceo	-45 V
	min. Temperatur	-55 °C
	Montage	SMD
	Sättigungsspannung	-650 mV
	Transitfrequenz fTmin	200 MHz
	Verlustleistung VA (AC)	0.35 W
	Kollektorstrom	-100 mA
	Max Gleichstromverstärkung	475 mA
	Min Gleichstromverstärkung	220 mA
