ZTX653 | Diodes

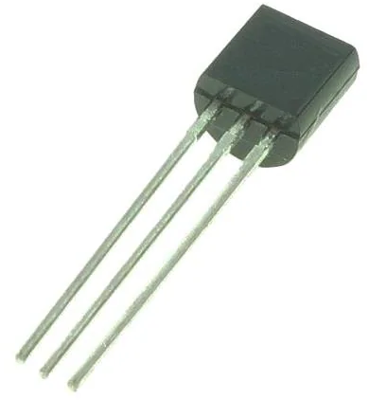

Bipolar junction transistor, NPN, 2 A, 100 V, THT, e-line, ZTX653

Order No.: 26S2868
EAN: 4099879030023
MPN:
ZTX653
Series: ZTX
Diodes
ZTX653 Diodes Bipolar Transistors
Image may differ
Print
Key Specification:
Assembly THT
Enclosure e-line
Version NPN
Saturation voltage 230 mV
Collector current 2 A
Show 7 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.5236 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
0.52 € *
*incl. VAT plus shipping costs
**Subject to prior sale
4000 pcs.
0.5236 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

NPN transistor, ZTX653, DIODES

NPN silicon planar medium power high voltage transistor, E-Line.
Technical specifications
Version NPN
Enclosure e-line
max. operating temperature 200 °C
max.voltage between collector and base Vcbo 120 V
max.voltage between collector and emitter Vceo 100 V
min. operating temperature -55 °C
Assembly THT
Saturation voltage 230 mV
Transit frequency fTmin 175 MHz
Power dissipation 1 W
Collector current 2 A
Show similar products 0
Logistics
Country of origin GB
Customs tariff number 85419000
Original Packaging Bulk with 4,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 6/8/11
SVHC free Yes
