ZTX849 | Diodes

Bipolar junction transistor, NPN, 5 A, 30 V, THT, e-line, ZTX849

Order No.: 26S2884
EAN: 4099879030054
MPN:
ZTX849
Series: ZTX
Diodes
ZTX849 Diodes Bipolar Transistors

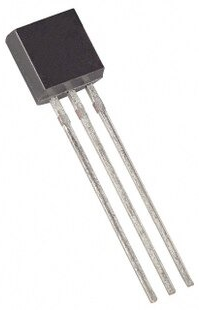

Image may differ
Print
Key Specification:
Assembly THT
Enclosure e-line
Version NPN
Saturation voltage 200 mV
Collector current 5 A
Show 7 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.6545 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
0.65 € *
*incl. VAT plus shipping costs
**Subject to prior sale
4000 pcs.
0.6545 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

NPN transistor, ZTX849, DIODES

NPN silicon planar medium power high current transistor, E-Line.
Technical specifications
Version NPN
Enclosure e-line
max. operating temperature 200 °C
max.voltage between collector and base Vcbo 80 V
max.voltage between collector and emitter Vceo 30 V
min. operating temperature -55 °C
Assembly THT
Rated current 5 A
Saturation voltage 200 mV
Transit frequency fTmin 100 MHz
Power dissipation 1.2 W
Collector current 5 A
Max DC amplification 300 mA
Min DC gain 100 mA
Show similar products 0
Logistics
Country of origin QU
Customs tariff number 85412900
Original Packaging Bulk with 4,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
