ZVNL120A | Diodes

Name: Diodes N channel vertical DMOS FET, 200 V, 180 mA, TO-226, ZVNL120A
Brand: Diodes
SKU: 26S2942
Price: 0.89 EUR
Availability: InStock

Diodes N channel vertical DMOS FET, 200 V, 180 mA, TO-226, ZVNL120A

Order No.: 26S2942

EAN: 4099879033819

MPN:

ZVNL120A

Series: ZVN

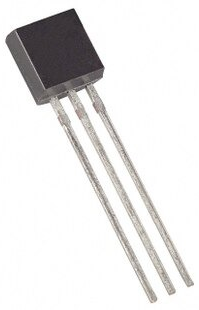

Image may differ

Key Specification:

Version N channel

max. Voltage 200 V

Max. current 180 mA

drain-source on resistance RDS (on) max @VGS=10V 10 Ω

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.8925 € *

Available: 180 pcs.

Leadtime: On Request **

Total Price:

0.89 € *

Price list

Quantity

Price per unit*

1 pcs.

0.8925 €

10 pcs.

0.6307 €

100 pcs.

0.5474 €

500 pcs.

0.4760 €

1000 pcs.

0.4284 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

MOSFET NFET s series ZVN.

Type: ZVNL120A, TO92

Technical specifications

	Version	N channel
	drain-source on resistance RDS (on) max @VGS=10V	10 Ω
	Gate Charge Qg @10V (nC)	1.5x10<sup>-9</sup> C
	Enclosure	TO-226
	max. Voltage	200 V
	Max. current	180 mA
	max. operating temperature	150 °C
	min. operating temperature	-55 °C
	Assembly	THT
	Power loss	700 mW
