ZXMN3F30FHTA | Diodes

Name: Diodes N channel MOSFET, 30 V, 4.6 A, TO-236, ZXMN3F30FHTA
Brand: Diodes
SKU: 33S2873
Price: 0.22 EUR
Availability: OutOfStock

Diodes N channel MOSFET, 30 V, 4.6 A, TO-236, ZXMN3F30FHTA

Order No.: 33S2873

EAN: 4099879034571

MPN:

ZXMN3F30FHTA

Series: ZXMN

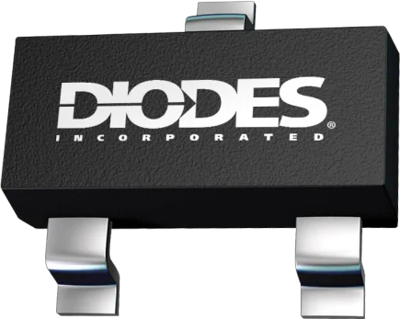

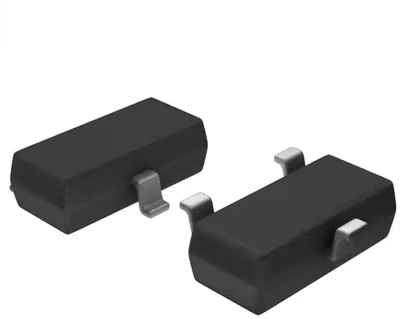

Image may differ

Key Specification:

Version N channel

max. Voltage 30 V

Max. current 4.6 A

drain-source on resistance RDS (on) max @VGS=10V 47 mΩ

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.2237 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

0.22 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

MOSFET, ZXMN3F30FHTA, Diodes

This new generation MOSFET features low onresistance achievable with 4.5V gate drive.

Features

Low On-Resistance
4.5V gate drive capability

Technical specifications

	Version	N channel
	drain-source on resistance RDS (on) max @VGS=10V	47 mΩ
	Gate Charge Qg @10V (nC)	7.7x10<sup>-9</sup> C
	Enclosure	TO-236
	max. Voltage	30 V
	Max. current	4.6 A
	max. operating temperature	150 °C
	min. operating temperature	-55 °C
	Assembly	SMD
