1.5KE47A | Diodes

Name: TVS diode, Unidirectional, 1.5 kW, 40.2 V, DO-27, Diodes 1.5KE47A
Brand: Diodes
SKU: 26S7220
Price: 0.27 EUR
Availability: InStock

TVS diode, Unidirectional, 1.5 kW, 40.2 V, DO-27, Diodes 1.5KE47A

Order No.: 26S7220

EAN: 4099879067630

MPN:

1.5KE47A

Series: 1.5KE_A

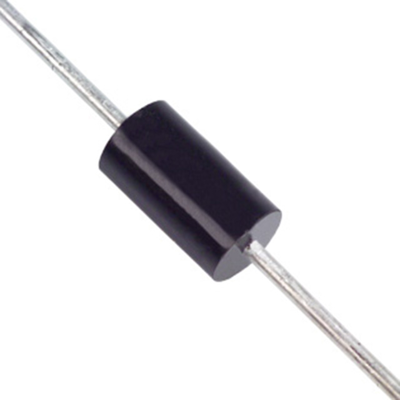

Image may differ

Key Specification:

Pulse power loss 1.5 kW

Rated blocking voltage 40.2 V

Breakdown voltage 49.4 V

Continuous power loss 5 W

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.2737 € *

Available: 1,012 pcs.

Leadtime: On Request **

Total Price:

0.27 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Suppressor diodes, 5.0 W, series 1,5KE.

Power: 5.0 W. Package: CB429.

Technical attributes (type, rated voltage, version, manufacturer): 1,5KE47A, 47 V, unidirectional, Diodes

Technical specifications

	Version	Unidirectional
	Continuous power loss	5 W
	Breakdown voltage	49.4 V
	Enclosure	DO-27
	Pulse power loss	1.5 kW
	max. operating temperature	175 °C
	min. operating temperature	-55 °C
	Assembly	THT
	Rated blocking voltage	40.2 V
