ZXCT1009FTA | Diodes

Processor Supervisor IC, SOT-23-3, ZXCT1009FTA

Order No.: 51S2175
EAN: 4099879104854
MPN:
ZXCT1009FTA
Series: ZXCT
ZXCT1009FTA Diodes Voltage Monitor ICs

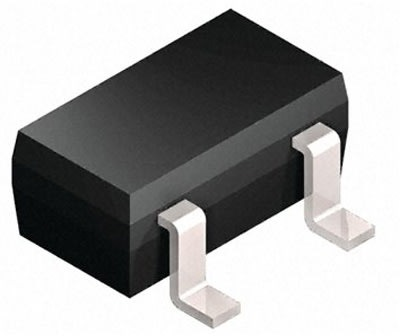

Image may differ
Unit Price (€ / pc.)
0.5474 € *
Available: 5,920 pcs.
Leadtime: On Request **
Total Price:
0.55 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
0.5474 €

IC, ZXCT1009FTA, Diodes

The ZXCT1009FTA is a high side current sense monitor. Using this device eliminates the need to disrupt the ground plane when sensing a load current. It takes a high side voltage developed across a current shunt resistor and translates it into a proportional output current. A user defined output resistor scales the output current into a ground-referenced voltage. A minimum operating current of just 4 µA, combined with a SOT23 package make it a unique solution for portable battery equipment.

Features

  • 1% typical accuracy
  • AEC-Q100.3 qualified

Applications

  • Battery chargers
  • Small battery packs
  • DC motor control
  • Over current monitor
  • Power management
  • Level translating
  • Programmable current source
Technical specifications
Output voltage DC -0,6-20 V
Output current 9.98 mA
Enclosure SOT-23-3
max. operating temperature 85 °C
min. operating temperature -40 °C
Assembly SMD
Logistics
Country of origin QU
Customs tariff number 85423390
MSL MSL 1
Original Packaging Rolle mit 3.000 Stück
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
