BC338-25 | Diotec

Bipolar junction transistor, NPN, 800 mA, 25 V, THT, TO-92, BC338-25

Order No.: 09S3305
EAN: 4099879025142
MPN:
BC338-25
Series: BC338
Diotec
BC338-25 Diotec Bipolar Transistors
Image may differ
Unit Price (€ / pc.)
0.0571 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.06 € *
*incl. VAT plus shipping costs
**Subject to prior sale
4000 pcs.
0.0571 €

NPN transistor, BC338-25, DIOTEC

General purpose NPN transistor.

Features

  • Compliant to RoHS, REACH, Conflict minerals

Applications

  • Signal processing
  • Switching
  • Amplification
  • Commercial/industrial grade
Technical specifications
Version NPN
Frequency 50 MHz
Enclosure TO-92
max. operating temperature 150 °C
max.voltage between collector and emitter Vceo 25 V
min. operating temperature -55 °C
Assembly THT
Saturation voltage 700 mV
Transit frequency fTmin 100 MHz
Power dissipation 0.625 W
Collector current 800 mA
Max DC amplification 400 mA
Min DC gain 160 mA
Logistics
Customs tariff number 85412900
MSL MSL 1

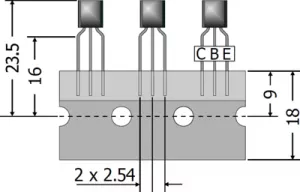

Original Packaging Ammopack with 4,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
