BC559C | Diotec
Bipolar junction transistor, PNP, -100 mA, -30 V, THT, TO-92, BC559C
Unit Price (€ / pc.)
0.0428 € *
Available: 0 pcs.
Leadtime: On Request **
PNP transistor, BC559C, DIOTEC
General purpose PNP transistor.
Features
- Compliant to RoHS, REACH, Conflict minerals
Applications
- Signal processing
- Switching
- Amplification
- Commercial/industrial grade
Technical specifications
| Version | PNP | |
| Frequency | 100 MHz | |

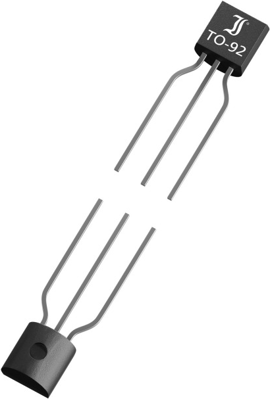

| Enclosure | TO-92 | |
| max. operating temperature | 150 °C | |
| max.voltage between collector and base Vcbo | -30 V | |
| max.voltage between collector and emitter Vceo | -30 V | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Saturation voltage | -650 mV | |
| Transit frequency fTmin | 150 MHz | |
| Power dissipation | 0.5 W | |
| Collector current | -100 mA | |
| Max DC amplification | 800 mA | |
| Min DC gain | 420 mA |
Download
Logistics
| Customs tariff number | 85412900 |
| MSL | MSL 1 |

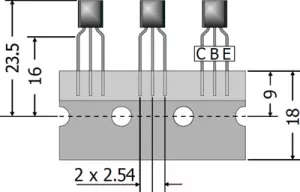

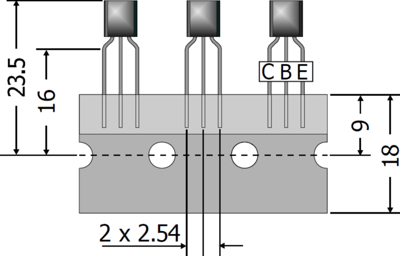

| Original Packaging | Ammopack with 4,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
