BC808-16 | Diotec
Bipolar junction transistor, PNP, -800 mA, -25 V, SMD, SOT-23, BC808-16
Unit Price (€ / pc.)
0.0440 € *
Available: 0 pcs.
Leadtime: On Request **
PNP transistor, BC808-16, DIOTEC
SMD general purpose PNP transistor.
Features
- Compliant to RoHS, REACH, Conflict minerals
Applications
- Signal processing
- Switching
- Amplification
Technical specifications
| Version | PNP | |
| Frequency | 50 MHz | |

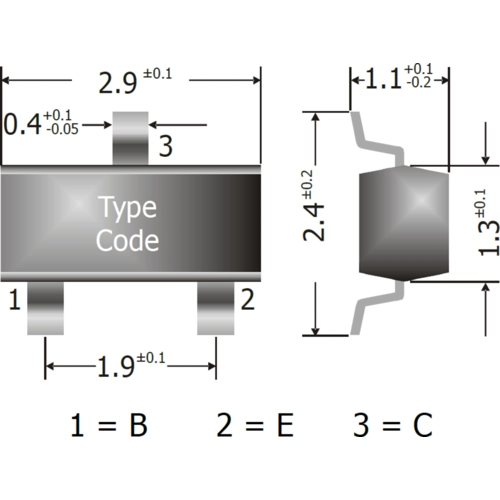

| Enclosure | SOT-23 | |
| max. operating temperature | 150 °C | |
| max.voltage between collector and emitter Vceo | -25 V | |
| min. operating temperature | -55 °C | |
| Assembly | SMD | |
| Saturation voltage | -700 mV | |
| Transit frequency fTmin | 100 MHz | |
| Power dissipation | 0.31 W | |
| Collector current | -800 mA | |
| Max DC amplification | 250 mA | |
| Min DC gain | 100 mA |
Download
Logistics
| Customs tariff number | 85412900 |
| MSL | MSL 1 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
