BC817-40R13 | Diotec
Bipolar junction transistor, NPN, 800 mA, 45 V, SMD, SOT-23, BC817-40R13
Unit Price (€ / pc.)
0.0417 € *
Available: 0 pcs.
Leadtime: On Request **
NPN transistor, BC817-40R13, DIOTEC
SMD general purpose NPN transistor.
Features
- Compliant to RoHS, REACH, Conflict minerals
Applications
- Signal processing
- Switching
- Amplification
- Commercial/industrial grade
Technical specifications
| Version | NPN | |
| Frequency | 50 MHz | |

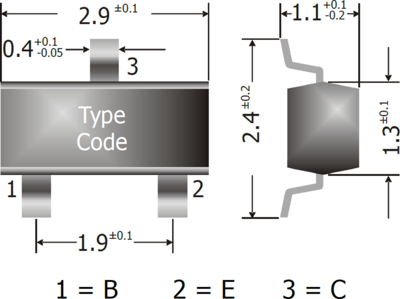

| Enclosure | SOT-23 | |
| max. operating temperature | 150 °C | |
| max.voltage between collector and base Vcbo | 50 V | |
| max.voltage between collector and emitter Vceo | 45 V | |
| min. operating temperature | -55 °C | |
| Assembly | SMD | |
| Saturation voltage | 700 mV | |
| Transit frequency fTmin | 170 MHz | |
| Power dissipation | 0.31 W | |
| Collector current | 800 mA | |
| Max DC amplification | 630 mA | |
| Min DC gain | 250 mA |
Download
Logistics
| Customs tariff number | 85412900 |
| MSL | MSL 1 |
| Original Packaging | Reel with 10,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
