MPSA42BK | Diotec
Bipolar junction transistor, NPN, 500 mA, 300 V, THT, TO-92, MPSA42BK
Unit Price (€ / pc.)
0.0405 € *
Available: 0 pcs.
Available in 5 Days: 3,100 pcs.
Leadtime: 17 Weeks **
Total Price:
0.04 € *
Price list
Quantity
Price per unit*
1 pcs.
0.0405 €
100 pcs.
0.0357 €
*incl. VAT plus shipping costs
**Subject to prior sale
NPN transistor, MPSA42BK, DIOTEC
High voltage Si-epitaxial planar transistor.
Features
- High collector-emitter voltage
- Compliant to RoHS, REACH, Conflict Minerals
Applications
- Signal processing
- Switching
- Amplification
- Commercial/industrial grade
Technical specifications
| Version | NPN | |
| Frequency | 100 MHz | |

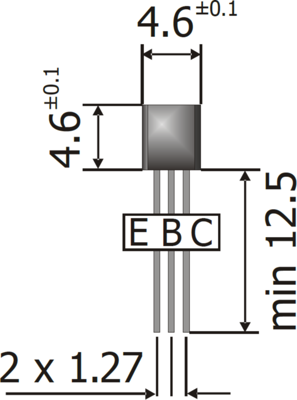

| Enclosure | TO-92 | |
| max. operating temperature | 150 °C | |
| max.voltage between collector and base Vcbo | 300 V | |
| max.voltage between collector and emitter Vceo | 300 V | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Saturation voltage | 500 V | |
| Transit frequency fTmin | 50 MHz | |
| Power dissipation | 0.625 W | |
| Collector current | 500 mA | |
| Min DC gain | 25 mA |
Download
Logistics
| Customs tariff number | 85412900 |
| MSL | MSL 1 |
| Original Packaging | Bulk with 5,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
