B250R | Diotec
Diotec bridge rectifier, 250 V, 600 V (RRM), 2 A, round bridge, B250R
Unit Price (€ / pc.)
0.6664 € *
Available: 2,804 pcs.
Leadtime: 6 Weeks **
Total Price:
6.66 € *
Price list
Quantity
Price per unit*
10 pcs.
0.6664 €
50 pcs.
0.5236 €
250 pcs.
0.4522 €
1000 pcs.
0.3927 €
2500 pcs.
0.3332 €
*incl. VAT plus shipping costs
**Subject to prior sale

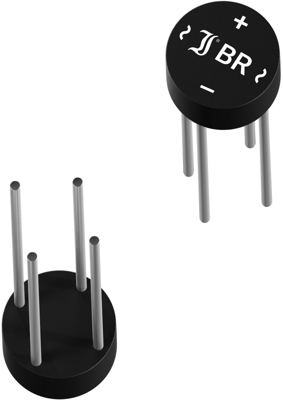

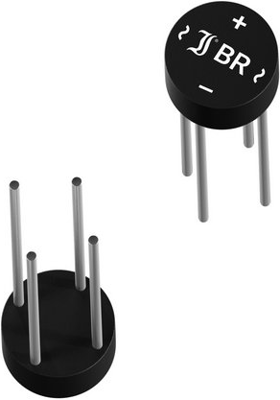

Diode bridge rectifier, B250R, DIOTEC
Features
- Four diodes in bridge configuration
- UL recognized
- Compliant to RoHS, REACH and conflict minerals
Applications
- 50/60 Hz mains rectification
- Power supplies
- Commercial grade
Technical specifications
| Ausführung | 1-phase | |
| Eingangsspannung | 250 V | |
| Gehäuse | Rundbrücke | |
| max. Temperatur | 150 °C | |
| min. Temperatur | -50 °C | |
| Montage | THT | |
| Nennstrom | 2 A | |
| Spannung V RRM (Spitzensperrspannung) | 600 V |
Download
Logistics
| Ursprungsland | SI |
| Zolltarifnummer | 85411000 |
| Originalverpackung | Bulk mit 1.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
