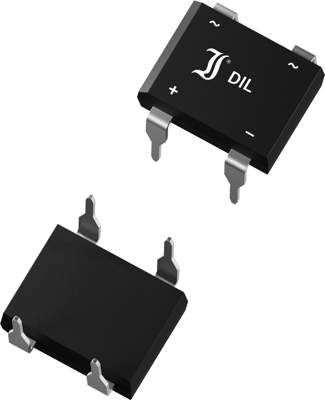

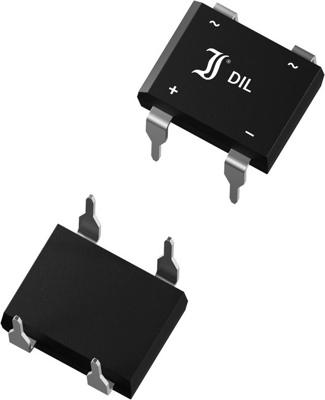

B380D | Diotec
Diotec bridge rectifier, 380 V, 800 V (RRM), 1 A, DIL, B380D
Unit Price (€ / pc.)
0.5474 € *
Available: 414 pcs.
Leadtime: On Request **
Total Price:
0.55 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5474 €
100 pcs.
0.4998 €
300 pcs.
0.3332 €
1000 pcs.
0.3094 €
3000 pcs.
0.2606 €
*incl. VAT plus shipping costs
**Subject to prior sale
Diode bridge rectifier, B380D, DIOTEC
Features
- Four diodes in bridge configuration
- UL recognized
- Compliant to RoHS, REACH and conflict minerals
Applications
- 50/60 Hz mains rectification
- Power supplies
- Commercial grade
Technical specifications
| Version | 1-phase | |
| Input voltage | 380 V | |

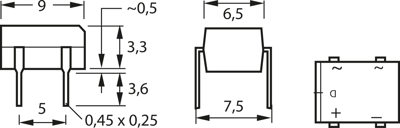

| Enclosure | DIL | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -50 °C | |
| Assembly | THT | |
| Rated current | 1 A | |
| Voltage V RRM (peak reverse voltage) | 800 V |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85411000 |
| Original Packaging | Bar with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
