B80C1500A | Diotec
Diotec bridge rectifier, 80 V, 160 V (RRM), 2.3 A, SIL, B80C1500A
Unit Price (€ / pc.)
1.5232 € *
Available: 486 pcs.
Leadtime: On Request **
Total Price:
1.52 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5232 €
25 pcs.
1.2257 €
100 pcs.
1.0472 €
250 pcs.
0.8925 €
*incl. VAT plus shipping costs
**Subject to prior sale

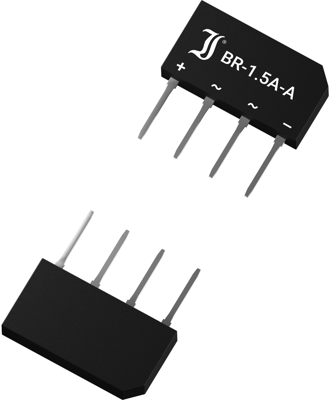

Bridge rectifier, B80C1500A, DIOTEC
Features
- For free-standing or heatsink assembly
- UL recognized
- Compliant to RoHS, REACH and conflict minerals
Applications
- 50/60 Hz mains rectification
- Power supplies
- Commercial grade
Technical specifications
| Version | 1-phase | |
| Input voltage | 80 V | |
| Enclosure | SIL | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -50 °C | |
| Assembly | THT | |
| Rated current | 2.3 A | |
| Voltage V RRM (peak reverse voltage) | 160 V |
Download
Logistics
| Country of origin | SI |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
