B80S | Diotec

Diotec SMD bridge rectifier, 80 V, 160 V (RRM), 1 A, SO-DIP, B80S

Order No.: 60A582
EAN: 4099879038265
MPN:
B80S
Series: BxS
Diotec
B80S Diotec Bridge Rectifiers

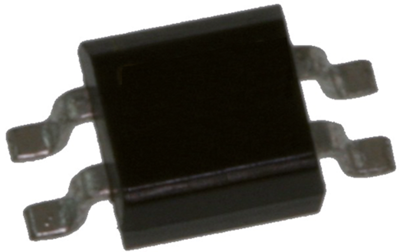

Image may differ
Unit Price (€ / pc.)
0.3070 € *
Available: 547 pcs.
Leadtime: On Request **
Total Price:
3.07 € *
Price list
Quantity
Price per unit*
10 pcs.
0.3070 €
50 pcs.
0.2190 €
250 pcs.
0.1833 €
1000 pcs.
0.1559 €
2500 pcs.
0.1357 €
*incl. VAT plus shipping costs
**Subject to prior sale

Diode bridge rectifier, B80S, DIOTEC

Features

  • Four diodes in bridge configuration
  • Slim profile
  • UL recognized
  • Compliant to RoHS, REACH and conflict minerals

Applications

  • 50/60 Hz mains rectification
  • Power supplies
  • Commercial grade
Technical specifications
Version 1-phase
Input voltage 80 V
Enclosure SO-DIP
max. operating temperature 150 °C
min. operating temperature -50 °C
Assembly SMD
Rated current 1 A
Voltage V RRM (peak reverse voltage) 160 V
Logistics
Country of origin SI
Customs tariff number 85411000
Original Packaging Reel with 1,500 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
