GBU12B | Diotec
Diotec bridge rectifier, 70 V, 100 V (RRM), 12 A, SIL, GBU12B
Unit Price (€ / pc.)
2.6537 € *
Available: 50 pcs.
Leadtime: On Request **
Total Price:
2.65 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6537 €
10 pcs.
2.2134 €
100 pcs.
1.9040 €
250 pcs.
1.7136 €
*incl. VAT plus shipping costs
**Subject to prior sale

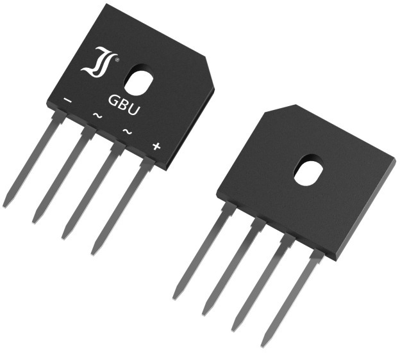

Diode bridge rectifier, GBU12B, DIOTEC
Features
- Four diodes in bridge configuration
- UL recognized
- Compliant to RoHS, REACH and conflict minerals
Applications
- 50/60 Hz mains rectification
- Power supplies
- Commercial grade
Technical specifications
| Version | 1-phase | |
| Input voltage | 70 V | |
| Enclosure | SIL | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -50 °C | |
| Assembly | THT | |
| Rated current | 12 A | |
| Voltage V RRM (peak reverse voltage) | 100 V |
Download
Logistics
| Country of origin | SI |
| Customs tariff number | 85411000 |
| Original Packaging | Bulk with 1,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
