GBU6A | Diotec

Diotec bridge rectifier, 35 V, 50 V (RRM), 6 A, SIL, GBU6A

Order No.: 60A910
EAN: 4099879038654
MPN:
GBU6A
Series: GBU6
Diotec

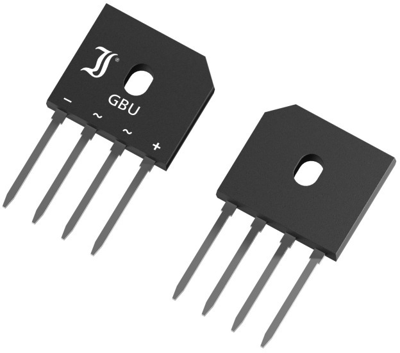

GBU6A Diotec Bridge Rectifiers
Image may differ
Print
Key Specification:
Version 1-phase
Assembly THT
Enclosure SIL
Input voltage 35 V
Rated current 6 A
Show 4 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.2547 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
0.25 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1000 pcs.
0.2547 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Diode bridge rectifier, GBU6A, DIOTEC

Features

  • Four diodes in bridge configuration
  • UL recognized
  • Compliant to RoHS, REACH and conflict minerals

Applications

  • 50/60 Hz mains rectification
  • Power supplies
  • Commercial grade
Technical specifications
Version 1-phase
Input voltage 35 V
Enclosure SIL
max. operating temperature 150 °C
min. operating temperature -50 °C
Assembly THT
Rated current 6 A
Voltage V RRM (peak reverse voltage) 50 V
Show similar products 0
Logistics
Country of origin SI
Customs tariff number 85411000
Original Packaging Bar with 1,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
