GBU8K | Diotec
Diotec bridge rectifier, 560 V, 800 V (RRM), 8 A, SIL, GBU8K
Unit Price (€ / pc.)
0.4998 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.50 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4998 €
10 pcs.
0.4522 €
50 pcs.
0.3927 €
100 pcs.
0.3332 €
*incl. VAT plus shipping costs
**Subject to prior sale

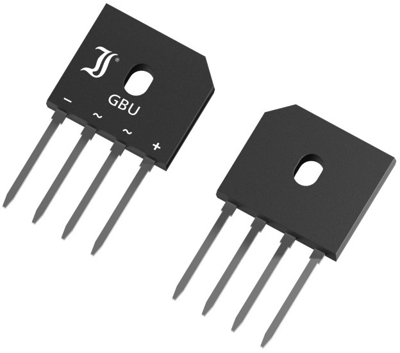

Diode bridge rectifier, GBU8K, DIOTEC
Features
- Four diodes in bridge configuration
- UL recognized
- Compliant to RoHS, REACH and conflict minerals
Applications
- 50/60 Hz mains rectification
- Power supplies
- Commercial grade
Technical specifications
| Ausführung | 1-phase | |
| Eingangsspannung | 560 V | |
| Gehäuse | SIL | |
| max. Temperatur | 150 °C | |
| min. Temperatur | -50 °C | |
| Montage | THT | |
| Nennstrom | 8 A | |
| Spannung V RRM (Spitzensperrspannung) | 800 V |
Download
Logistics
| Ursprungsland | SI |
| Zolltarifnummer | 85411000 |
| Originalverpackung | Bulk mit 1 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
