GBU8M | Diotec

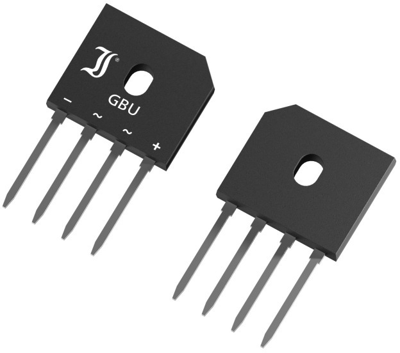

Diotec bridge rectifier, 700 V, 1 kV (RRM), 8 A, SIL, GBU8M
Unit Price (€ / pc.)
0.7021 € *
Available: 589 pcs.
Leadtime: On Request **
Total Price:
0.70 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7021 €
25 pcs.
0.5593 €
100 pcs.
0.4760 €
250 pcs.
0.4046 €
1000 pcs.
0.3570 €
*incl. VAT plus shipping costs
**Subject to prior sale
Diode bridge rectifier, GBU8M, DIOTEC
Features
- Four diodes in bridge configuration
- UL recognized
- Compliant to RoHS, REACH and conflict minerals
Applications
- 50/60 Hz mains rectification
- Power supplies
- Commercial grade
Technical specifications
| Ausführung | 1-phase | |
| Eingangsspannung | 700 V | |
| Gehäuse | SIL | |
| max. Temperatur | 150 °C | |
| min. Temperatur | -50 °C | |
| Montage | THT | |
| Nennstrom | 8 A | |
| Spannung V RRM (Spitzensperrspannung) | 1 kV |
Download
Logistics
| Ursprungsland | SI |
| Zolltarifnummer | 85411000 |
| Originalverpackung | Bulk mit 1.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
