KBPC810 | Diotec

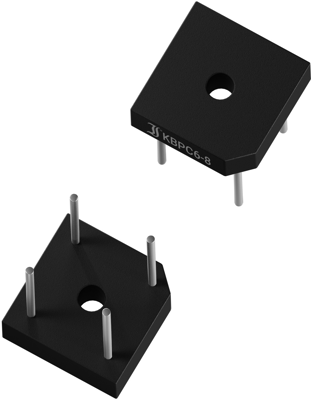

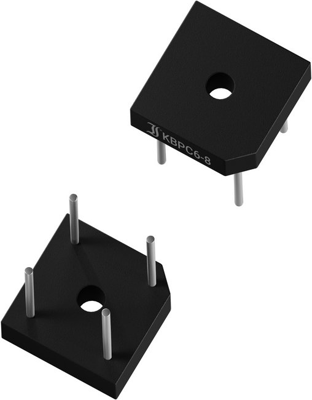

Diotec bridge rectifier, 700 V, 1 kV (RRM), 8 A, flat bridge, KBPC810
Unit Price (€ / pc.)
0.7378 € *
Available: 0 pcs.
Leadtime: On Request **
Bridge rectifier, KBPC810, DIOTEC
Features
- For free-standing or heatsink assembly
- UL recognized
- Compliant to RoHS, REACH and conflict minerals
Applications
- 50/60 Hz mains rectification
- Power supplies
- Commercial grade
Technical specifications
| Version | 1-phase | |
| Input voltage | 700 V | |
| Enclosure | flat bridge | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -50 °C | |
| Assembly | THT | |
| Rated current | 8 A | |
| Voltage V RRM (peak reverse voltage) | 1 kV |
Download
Logistics
| Country of origin | SI |
| Customs tariff number | 85411000 |
| MSL | MSL 1 |
| Original Packaging | Bulk with 200 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
