1N5404 | Diotec

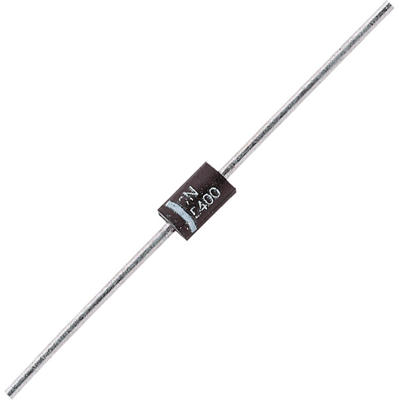

Rectifier diode, 400 V, DO-201, 1N5404
Unit Price (€ / pc.)
0.1583 € *
Available: 3,019 pcs.
Leadtime: On Request **
Total Price:
1.58 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1583 €
50 pcs.
0.1131 €
250 pcs.
0.0952 €
1000 pcs.
0.0809 €
2500 pcs.
0.0714 €
*incl. VAT plus shipping costs
**Subject to prior sale
Rectifier diodes.
Technical attributes (type, rated current, cyclic peak reverse voltage, package, manufacturer): 1N5404, 3.0 A, 400 V, DO-201, Diotec
Technical specifications
| Number of diodes | 1 | |
| Version | rectifier diode | |
| Enclosure | DO-201 | |
| max. operating temperature | 175 °C | |
| min. operating temperature | -50 °C | |
| Assembly | THT | |
| Rated current | 3 A | |
| Junction temperature (max.) | 175 °C | |
| Junction temperature (min.) | -50 °C | |
| Rated blocking voltage | 400 V | |
| Surge blocking voltage V RMS | 400 V |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85411000 |
| Original Packaging | Reel with 1 piece |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
