SUF4007 | Diotec

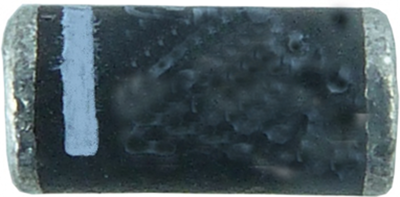

Ultrafast SMD silicon diode, 1000 V, 1 A, DO-213AB, SUF4007
Unit Price (€ / pc.)
0.1749 € *
Available: 6,930 pcs.
Leadtime: On Request **
Total Price:
1.75 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1749 €
50 pcs.
0.1249 €
250 pcs.
0.1047 €
1000 pcs.
0.0893 €
2500 pcs.
0.0785 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD rectifier diodes, type Diotec SUF4.
Ultra-fast reverse recovery, for the rectification of mid-range frequencies; Package material: UL 94 V-0. Junction temperature: –50 to +175 °C. Package: DO213AB (MELF).
Technical attributes (type, periodic peak reverse voltage, limiting value of mean on-state current): SUF4007, 1000 V, 1.0 A
Technical specifications
| Version | Ultrafast recovery diode | |
| Forward Current | 1 A | |
| Enclosure | DO-213AB | |
| max. operating temperature | 175 °C | |
| min. operating temperature | -50 °C | |
| Assembly | SMD | |
| Voltage V RRM (peak reverse voltage) | 1000 V | |
| Junction temperature (max.) | 175 °C | |
| Junction temperature (min.) | -50 °C | |
| Surge blocking voltage V RMS | 1000 V |
Download
Logistics
| Country of origin | SI |
| Customs tariff number | 85411000 |
| MSL | MSL 1 |
| Original Packaging | Reel with 1 piece |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
