LL103A | Diotec

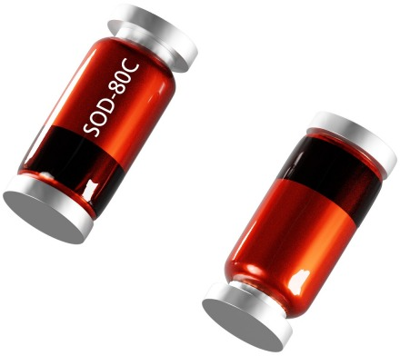

Schottky rectifier diode, 40 V (RRM), 0.35 A, SOD-80C, LL103A
Unit Price (€ / pc.)
0.1107 € *
Available: 966 pcs.
Leadtime: On Request **
Total Price:
11.07 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1107 €
300 pcs.
0.0785 €
1000 pcs.
0.0666 €
3000 pcs.
0.0559 €
*incl. VAT plus shipping costs
**Subject to prior sale
Schottky diode, LL103A, Diotec
SMD small signal Schottky diode.
Features
- Low forward voltage drop
- High switching speed
- Low junction capacitance
- Compliant to RoHS
Applications
- Signal processing
- High-speed switching
- Polarity protection
Technical specifications
| Number of diodes | 1 | |
| Version | schottky rectifier diode | |
| Forward Current | 0.35 A | |
| Enclosure | SOD-80C | |
| Capacity | 50 pF | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Assembly | SMD | |
| Voltage V RRM (peak reverse voltage) | 40 V | |
| Junction temperature (max.) | 125 °C | |
| Junction temperature (min.) | -55 °C | |
| Surge blocking voltage V RMS | 40 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85411000 |
| MSL | MSL 1 |
| Original Packaging | Reel with 1 piece |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
