SB530 | Diotec

Schottky rectifier diode, 30 V (RRM), 5 A, DO-201, SB530

Order No.: 24S6671
EAN: 4099879045690
MPN:
SB530
Series: SB..
Diotec
SB530 Diotec Schottky Diodes

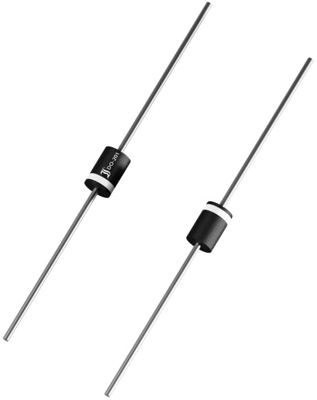

Image may differ
Unit Price (€ / pc.)
0.4046 € *
Available: 860 pcs.
Leadtime: On Request **
Total Price:
4.05 € *
Price list
Quantity
Price per unit*
10 pcs.
0.4046 €
50 pcs.
0.3332 €
250 pcs.
0.2773 €
1000 pcs.
0.2392 €
2500 pcs.
0.2106 €
*incl. VAT plus shipping costs
**Subject to prior sale

Schottky diode, SB530, Diotec

Schottky barrier rectifier diode.

Features

  • Low forward voltage drop
  • Compliant to RoHS

Applications

  • Output rectification in DC/DC converters
  • Polarity protection
  • Free-wheeling diodes
Technical specifications
Number of diodes 1
Version schottky rectifier diode
Forward Current 5 A
Enclosure DO-201
max. operating temperature 175 °C
min. operating temperature -50 °C
Assembly THT
Voltage V RRM (peak reverse voltage) 30 V
Junction temperature (max.) 150 °C
Junction temperature (min.) -50 °C
Surge blocking voltage V RMS 30 V
Logistics
Country of origin SK
Customs tariff number 85411000
Original Packaging Reel with 1,250 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
