SB560 AY 10001 | Diotec

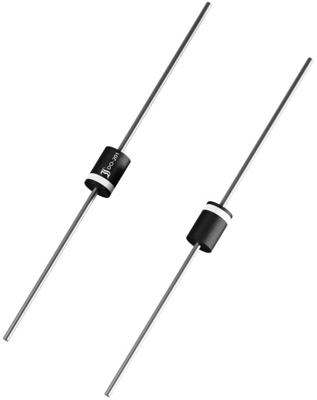

Schottky rectifier diode, 60 V (RRM), 5 A, DO-201, SB560 AY 10001
Abgekündigt
Unit Price (€ / pc.)
0.2963 € *
Available: 148 pcs.
Leadtime: 34 Weeks **
Total Price:
2.96 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2963 €
50 pcs.
0.2547 €
250 pcs.
0.2202 €
1700 pcs.
0.1987 €
3400 pcs.
0.1654 €
*incl. VAT plus shipping costs
**Subject to prior sale
Schottky rectifier diode, SB560, Diotec
Features
- Low forward voltage drop
- High average forward current
Applications
- Output Rectification in DC/DC Converters
- Polarity Protection
- Free-wheeling diodes
Technical specifications
| Anzahl der Dioden | 1 | |
| Ausführung | Schottky-Gleichrichterdiode | |
| Durchlassstrom | 5 A | |
| Gehäuse | DO-201 | |
| Kapazität | 250 pF | |
| max. Temperatur | 175 °C | |
| min. Temperatur | -50 °C | |
| Montage | THT | |
| Spannung V RRM (Spitzensperrspannung) | 60 V | |
| Sperrschichttemperatur (max.) | 150 °C | |
| Sperrschichttemperatur (min.) | -50 °C | |
| Stoßspitzensperrspannung V RMS | 60 V |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85411000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
