DE 301-RS-21 (3 VOLT) | Display Elektronik

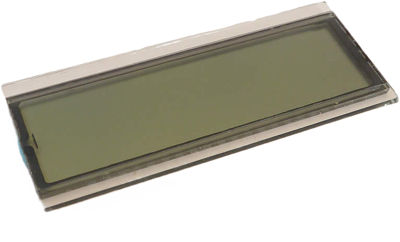

LCD panel, 8 character, viewing area: 47 x 13 mm, DE 301-RS-21 (3 VOLT)
Order No.: 73S0178
EAN: 4099891977436
MPN:
DE 301-RS-21 (3 VOLT)
Unit Price (€ / pc.)
2.7727 € *
Available: 0 pcs.
Leadtime: 1 Week **
LCD Panel, DE 301-RS-21 (3 VOLT), Display Elektronik
Features
- There is a wide range of standard lcd-panels
- Most of our standard panels operate within the extended temperature range (-20°C to +70°C)
- For the static types the Vlcd is ready for 3 Volt
- For outdoor applications we offer suitable LCD-displays with extreme wide temperature range and UV-stability
Technical specifications
| Anzeige | 8 Zeichen | |
| Betrachtungsbereich (Breite) | 47 mm | |
| Betrachtungsbereich (Höhe) | 13 mm | |
| Breite | 52 mm | |
| Hintergrundbeleuchtung | LCD | |
| Höhe | 22 mm | |
| max. Temperatur | 70 °C | |
| min. Temperatur | -20 °C | |
| Zeichenhöhe | 7 mm |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85241100 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
