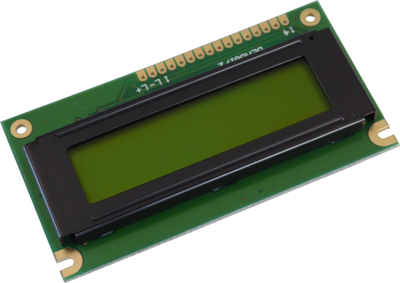

DEM 08172 SYH-PY | Display Elektronik
Alphanumeric display, 1 x 8 character, STN yellow/green, viewing area: 61 x 15.8 mm, DEM 08172 SYH-PY
Order No.: 71S302
EAN: 4099879003737
MPN:
DEM 08172 SYH-PY
Unit Price (€ / pc.)
10.8052 € *
Available: 0 pcs.
Leadtime: On Request **

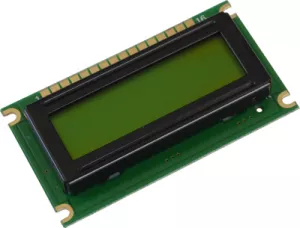

LCD-Module, DEM 08171 SYH-LY, Display Elektronik
FEATURES
- Power Supply Voltage 5.0 V
- LCD mode: STN,Yellow,Green,Lightbox
- Temperature (-20 °C to 70 °C)
- Storage temperature (-30 °C to 80 °C)
Technical specifications
| Display | 1 x 8 Zeichen | |
| Viewing area (width) | 61 mm | |
| Viewing range (height) | 15.8 mm | |
| Width | 84 mm | |
| Thickness | 7.6 mm | |
| type of backlight | LED | |
| Background color | gelb/grün | |
| Height | 44 mm | |
| IC controller/driver | HD44780 kompatibel | |
| Image | Positiv | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| MPU interface | 8-Bit-MCU | |
| Technology | STN-gelb/grün | |
| Character height | 10.75 mm | |
| Character set | Englisch-Japanisch |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
