DEM 128064B SYH-PY | Display Elektronik

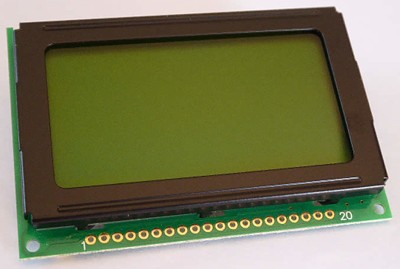

Graphic mono LCD display, 128 x 64 character, STN yellow/green, viewing area: 60 x 32.6 mm, DEM 128064B SYH-PY
Order No.: 71S753
EAN: 4099879004635
MPN:
DEM 128064B SYH-PY
Unit Price (€ / pc.)
22.9075 € *
Available: 0 pcs.
Leadtime: On Request **
LCD module, DEM 128064B SYH-PY, Display Elektronik
STN Yellow Green Transflective Positive Mode.
Technical specifications
| Display | 128 x 64 Zeichen | |
| Viewing area (width) | 60 mm | |
| Viewing range (height) | 32.6 mm | |
| Width | 75 mm | |
| Thickness | 7 mm | |
| type of backlight | LED | |
| Background color | gelb/grün | |
| Height | 52.7 mm | |
| IC controller/driver | SBN0064G | |
| Image | Positiv | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| MPU interface | 8-Bit-MCU | |
| Technology | STN-gelb/grün |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85249100 |
| MSL | MSL 1 |
| Original Packaging | Tray mit 64 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
