DEM 128064F1 FGH | Display Elektronik
Graphic display, 128 x 64 character, FSTN, viewing area: 60.6 x 33.1 mm, DEM 128064F1 FGH
Order No.: 73S0099
EAN: 4099891976644
MPN:
DEM 128064F1 FGH
Unit Price (€ / pc.)
10.5196 € *
Available: 0 pcs.
Leadtime: 1 Week **

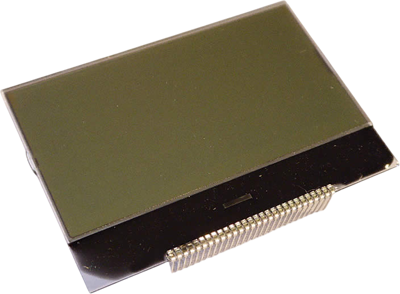

LCD Module, DEM 128064F1 FGH, Display Elektronik
Features
- Viewing direction: 6 O’clock
- Power Supply Voltage: 3.0 Volt
- Interface: Parallel & Serial
- RoHS Compliantt
Technical specifications
| Display | 128 x 64 Zeichen | |
| Viewing area (width) | 60.6 mm | |
| Viewing range (height) | 33.1 mm | |
| Width | 66.6 mm | |
| Thickness | 2.15 mm | |
| type of backlight | ohne | |
| Height | 47 mm | |
| IC controller/driver | IST3004-TX | |
| Image | Positiv | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| MPU interface | 8-Bit-MCU, SPI | |
| Technology | FSTN |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85249100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
