DEM 16216 SYH-LY-CYR22 | Display Elektronik

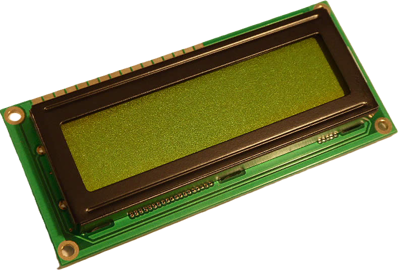

LCD display, 16 x 2 character, STN yellow/green, viewing area: 61 x 15.8 mm, DEM 16216 SYH-LY-CYR22
Order No.: 73S0020
EAN: 4099891975852
MPN:
DEM 16216 SYH-LY-CYR22
Unit Price (€ / pc.)
14.637 € *
Available: 0 pcs.
Leadtime: 1 Week **
LCD Module, DEM 16216 SYH-LY-CYR22, Display Elektronik
Features
- Viewing direction: 6 O’clock
- Power Supply Voltage: 5.0 V
- Backlight: LED, Yellow-Green, Lightbox
- Easy Interface with a 4-bit or 8-bit MPU
Technical specifications
| Display | 16 x 2 Zeichen | |
| Viewing area (width) | 61 mm | |
| Viewing range (height) | 15.8 mm | |
| Width | 80 mm | |
| Thickness | 9.6 mm | |
| type of backlight | LED | |
| Background color | gelb/grün | |
| Height | 36 mm | |
| IC controller/driver | HD44780 kompatibel | |
| Image | Positiv | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| MPU interface | 8-Bit-MCU | |
| Technology | STN-gelb/grün | |
| Character height | 5.55 mm | |
| Character set | Englisch-Kyrillisch |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85249100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
