DEP 128032E1-Y | Display Elektronik
OLED Display DEP 128032E1-Y0,9" - 128x32, PM-OLED, Yellow, I2C
Order No.: 73S0220
EAN: 4099891977856
MPN:
DEP 128032E1-Y
Unit Price (€ / pc.)
6.5569 € *
Available: 0 pcs.
Leadtime: 1 Week **

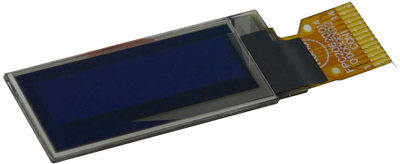

OLED Module, DEP 128032E1-Y, Display Elektronik
Features
- Active Area: 22.384 x 5.584 mm
- Display Mode: Passive Matrix
- Duty: 1/32
- Display Color: Yellow
Technical specifications
| Display | 128 x 32 Zeichen | |
| Viewing area (width) | 22.38 mm | |
| Viewing range (height) | 5.58 mm | |
| Width | 30 mm | |
| Thickness | 1.26 mm | |
| Shell size | 30 x 11,5 x 1,26 mm | |
| type of backlight | OLED | |
| Background color | gelb | |
| Height | 11.5 mm | |
| IC controller/driver | SSD1306BZ kompatibel | |
| Lifetime | 50,000 Stunden | |
| Light intensity min. | 100 cd | |
| Light intensity typ. | 120 cd | |
| max. operating temperature | 80 °C | |
| min. operating temperature | -40 °C | |
| MPU interface | I²C | |
| Technology | OLED |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85249200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
