DEM 1024600M4 VMH-PW-N (A-TOUCH) | Display Elektronik

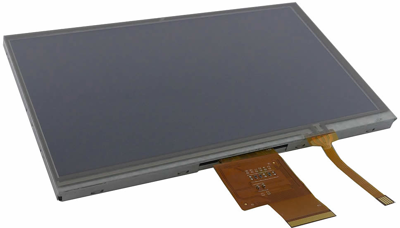

TFT module, 7"/17.8 cm, with touch function, 1024 x 600, DEM 1024600M4 VMH-PW-N (A-TOUCH)
Order No.: 73S0494
EAN: 4099891980597
MPN:
DEM 1024600M4 VMH-PW-N (A-TOUCH)
Unit Price (€ / pc.)
62.9510 € *
Available: 1 pcs.
Leadtime: 1 Week **
Total Price:
62.95 € *
Price list
Quantity
Price per unit*
1 pcs.
62.9510 €
24 pcs.
56.4536 €
*incl. VAT plus shipping costs
**Subject to prior sale
TFT Module, DEM 1024600M4 VMH-PW-N (A-TOUCH), Display Elektronik
Features
- TFT/IPS/Normally Black/Transmissive
- Viewing Direction: All
- Backlight type: 30-Dies White LED
- Interface type: RGB
Technical specifications
| Product type | TFT-Modul | |
| Version | mit Touch-Funktion | |
| Resolution | 1024 x 600 | |
| screen diagonal | 7"/17,8 cm | |
| Viewing range (height) | 154.21 mm | |
| Viewing area (width) | 85.92 mm | |
| Technology | IPS - Transmissive | |
| Shell size | 164,9 x 100 x 7,05 mm | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85249100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
