DEM 128160C TMH-PW-N (C1-TOUCH) | Display Elektronik

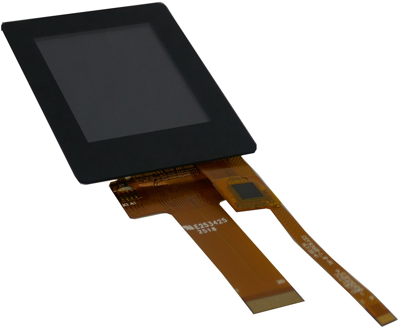

TFT module, 1.77"/4.49 cm, with touch function, 128 x 160, DEM 128160C TMH-PW-N (C1-TOUCH)
Order No.: 73S0273
EAN: 4099891978389
MPN:
DEM 128160C TMH-PW-N (C1-TOUCH)
Unit Price (€ / pc.)
12.4236 € *
Available: 0 pcs.
Leadtime: 1 Week **
TFT Module, DEM 128160C TMH-PW-N (C1-TOUCH), Display Elektronik
The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver ICs, a touch panel and a backlight unit.
Technical specifications
| Product type | TFT-Modul | |
| Version | mit Touch-Funktion | |
| Resolution | 128 x 160 | |
| screen diagonal | 1,77"/4,49 cm | |
| Viewing range (height) | 28.03 mm | |
| Viewing area (width) | 35.04 mm | |
| Technology | TN - Transmissive | |
| Shell size | 40,7 x 52,75 x 4,2 mm | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85249100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
