DEM 240320K TMH-PW-N (C1-TOUCH) | Display Elektronik

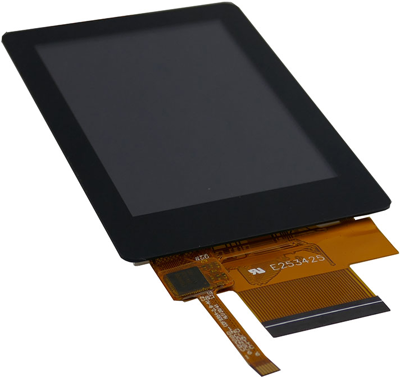

TFT module, 2.8"/7.1 cm, with touch function, 240 x 320, DEM 240320K TMH-PW-N (C1-TOUCH)
Order No.: 73S0288
EAN: 4099891978532
MPN:
DEM 240320K TMH-PW-N (C1-TOUCH)
Unit Price (€ / pc.)
25.7040 € *
Available: 2 pcs.
Leadtime: 1 Week **
Total Price:
25.70 € *
Price list
Quantity
Price per unit*
1 pcs.
25.7040 €
126 pcs.
18.0642 €
*incl. VAT plus shipping costs
**Subject to prior sale
TFT Module, DEM 240320K TMH-PW-N (C1-TOUCH), Display Elektronik
The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver ICs, a touch panel and a backlight unit. This TFT Module is having an universal interface pin layout to access all relevant interfaces of the TFT driver IC. It allows to be flexible in case of TFT diver IC changes.
Technical specifications
| Resolution | 240 x 320 | |
| Version | mit Touch-Funktion | |
| Viewing area (width) | 57.6 mm | |
| Viewing range (height) | 43.2 mm | |
| screen diagonal | 2,8"/7,1 cm | |
| Shell size | 50 x 75,2 x 4,45 mm | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Product type | TFT-Modul | |
| Technology | TN - Transmissive |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85249100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
