DEM 240320O VMH-PW-N | Display Elektronik

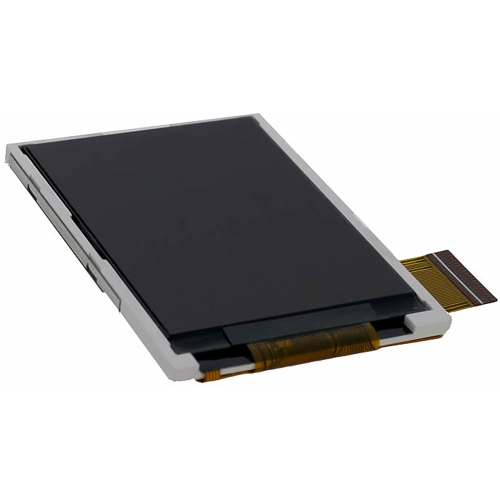

TFT module, 2"/5.1 cm, 240 x 320, DEM 240320O VMH-PW-N
Order No.: 73S0295
EAN: 4099891978600
MPN:
DEM 240320O VMH-PW-N
Unit Price (€ / pc.)
13.6136 € *
Available: 0 pcs.
Leadtime: 1 Week **
TFT Module, DEM 240320O VMH-PW-N, Display Elektronik
The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver ICs and a backlight unit.
Technical specifications
| Resolution | 240 x 320 | |
| Viewing area (width) | 40.8 mm | |
| Viewing range (height) | 30.6 mm | |
| screen diagonal | 2"/5,1 cm | |
| Shell size | 37,68 x 51,3 x 2,5 mm | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Product type | TFT-Modul | |
| Technology | MVA - Transmissive |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85249100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
