DEM 320120A1 VMX-PW-N | Display Elektronik

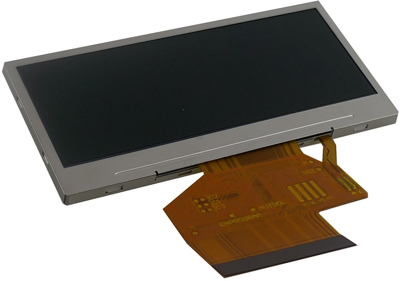

TFT module, 2.9"/7.36 cm, 320 x 120, DEM 320120A1 VMX-PW-N
Order No.: 73S0306
EAN: 4099891978716
MPN:
DEM 320120A1 VMX-PW-N
Unit Price (€ / pc.)
20.7893 € *
Available: 0 pcs.
Leadtime: 1 Week **
LCD Module, DEM 320120A1 VMX-PW-N, Display Elektronik
Features
- LCD Type: TFT/IPS/Normally Black/Transmissive
- Viewing Direction: IPS
- Top polarizer type: Anti-glare (All Directions)
- Backlight type: 6-Dies White LED
- Interface type: 18-Bit-RGB
Technical specifications
| Resolution | 320 x 120 | |
| Viewing area (width) | 26.28 mm | |
| Viewing range (height) | 70.08 mm | |
| screen diagonal | 2,9"/7,36 cm | |
| Shell size | 76,9 x 38,22 x 3,26 mm | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -30 °C | |
| Product type | TFT-Modul | |
| Technology | IPS - Transmissive |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85249100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
