DEM 320240G1 TMH-PW-N | Display Elektronik
TFT display, 3.5"/8.9 cm, 320 x 240, DEM 320240G1 TMH-PW-N
Order No.: 71S973
EAN: 4099879007025
MPN:
DEM 320240G1 TMH-PW-N
Unit Price (€ / pc.)
17.2788 € *
Available: 0 pcs.
Leadtime: 1 Week **

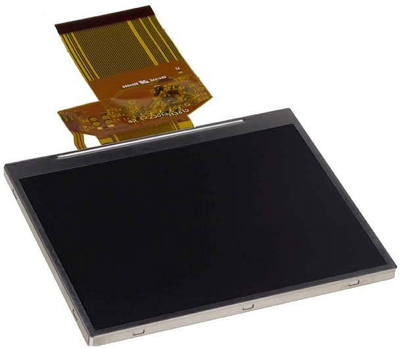

TFT module, DEM 320240G1 TMH-PW-N, Display Electronic
DEM 320240G1 TMH-PW-N (A-TOUCH) is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.
Technical specifications
| Resolution | 320 x 240 | |
| Viewing area (width) | 70.08 mm | |
| Viewing range (height) | 52.56 mm | |
| screen diagonal | 3,5"/8,9 cm | |
| Shell size | 76,9 x 63,9 x 3,2 mm | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Product type | TFT-Display | |
| Technology | TN - Transmissive |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85312095 |
| MSL | MSL 1 |
| Original Packaging | Tray mit 80 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
