DEM 480272E2 TMH-PW-N (A-TOUCH) | Display Elektronik
TFT module, 4.3"/10.9 cm, with touch function, 480 x 272, DEM 480272E2 TMH-PW-N (A-TOUCH)
Order No.: 73S0357
EAN: 4099891979225
MPN:
DEM 480272E2 TMH-PW-N (A-TOUCH)
Unit Price (€ / pc.)
35.6405 € *
Available: 2 pcs.
Leadtime: 1 Week **
Total Price:
35.64 € *
Price list
Quantity
Price per unit*
1 pcs.
35.6405 €
63 pcs.
24.0142 €
*incl. VAT plus shipping costs
**Subject to prior sale

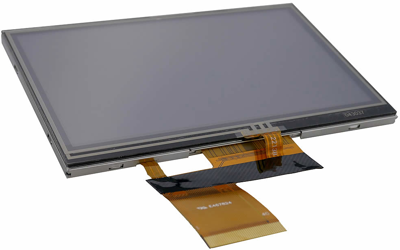

TFT Module, DEM 480272E2 TMH-PW-N (A-TOUCH), Display Elektronik
The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver ICs, a touch panel and a backlight unit.
Technical specifications
| Resolution | 480 x 272 | |
| Version | mit Touch-Funktion | |
| Viewing area (width) | 53.86 mm | |
| Viewing range (height) | 95.04 mm | |
| screen diagonal | 4,3"/10,9 cm | |
| Shell size | 105,5 x 67,2 x 4,15 mm | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Product type | TFT-Modul | |
| Technology | TN - Transmissive |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85249100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
