DEM 640480C1 TMH-PW-N | Display Elektronik

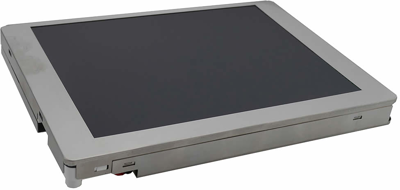

TFT module, 5.7"/14.5 cm, 640 x 480, DEM 640480C1 TMH-PW-N
Order No.: 73S0377
EAN: 4099891979423
MPN:
DEM 640480C1 TMH-PW-N
Unit Price (€ / pc.)
105.5292 € *
Available: 0 pcs.
Leadtime: 1 Week **
LCD Module, DEM 640480C1 TMH-PW-N, Display Elektronik
DEM 640480C1 TMH-PW-N is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module, a driver circuit and a back-light unit. Graphics and texts can be displayed on a VGA 640 (W) x 3 x 480 (H) dots with 262,144 colors by supplying 18 bits data signal (6bits/each color).
Features
- TN (Twisted Nematic) mode
- Digital RGB (6bits/color) data transfer
- RoHS Compliant
Technical specifications
| Resolution | 640 x 480 | |
| Viewing area (width) | 86.4 mm | |
| Viewing range (height) | 115.2 mm | |
| screen diagonal | 5,7"/14,5 cm | |
| Shell size | 144 x 104,6 x 7 mm | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Product type | TFT-Modul | |
| Technology | TN - Transmissive |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85249100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
