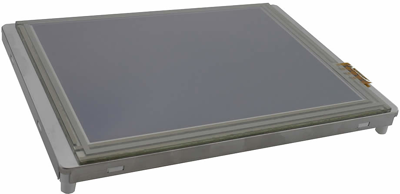

DEM 640480D TMX-PW-N (A-TOUCH) | Display Elektronik
TFT-Modul DEM 640480D TMX-PW-N (A-TOUCH)5,7"-TFT, 640xRGBx480, TN-transmissive, 700cd/m2,
Order No.: 73S0382
EAN: 4099891979478
MPN:
DEM 640480D TMX-PW-N (A-TOUCH)
Unit Price (€ / pc.)
136.1598 € *
Available: 0 pcs.
Leadtime: 1 Week **
TFT Module, DEM 640480D TMX-PW-N (A-TOUCH), Display Elektronik
DEM 640480D TMX-PW-N (A-TOUCH) is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module, a driver circuit and a back-light unit. Graphics and texts can be displayed on a VGA 640 (W) x 3 x 480 (H) dots with 262,144 colors by supplying 18 bits data signal (6bits/each color).
Features
- TN (Twisted Nematic) mode
- LVDS (6-Bits/Color) Data Transfer
- RoHS Compliant
Technical specifications
| Auflösung | 640 x 480 | |
| Ausführung | TFT-Modul | |
| Betrachtungsbereich (Breite) | 86.4 mm | |
| Betrachtungsbereich (Höhe) | 115.2 mm | |
| Bildschirm-Diagonale | 5,7"/14,5 cm | |
| Gehäusegröße | 144 x 104,6 x 8,5 mm | |
| max. Temperatur | 85 °C | |
| min. Temperatur | -30 °C | |
| Technologie | TN - Transmissive |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85249100 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
