DEM 800480K4 TMH-PW-N (A-TOUCH) | Display Elektronik
TFT-Modul DEM 800480K4 TMH-PW-N (A-TOUCH)7,0"-TFT, 800xRGBx480, TN-transmissive, 900cd/m2,
Order No.: 73S0433
EAN: 4099891979980
MPN:
DEM 800480K4 TMH-PW-N (A-TOUCH)
Unit Price (€ / pc.)
77.2310 € *
Available: 2 pcs.
Leadtime: 1 Week **
Total Price:
77.23 € *
Price list
Quantity
Price per unit*
1 pcs.
77.2310 €
24 pcs.
51.4913 €
*incl. VAT plus shipping costs
**Subject to prior sale

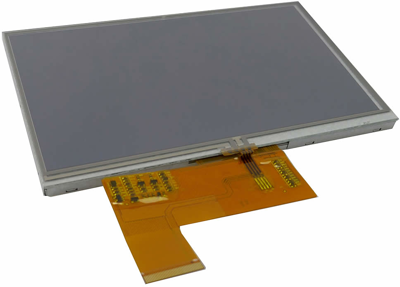

LCD Module, DEM 800480K4 TMH-PW-N (A-TOUCH), Display Elektronik
Features
- LCD Type: TFT/TN/Normally White/Transmissive
- Viewing Direction: 12:00 O'Clock
- Backlight type: 28-Dies White LED
- Interface type: RGB
Technical specifications
| Resolution | 800 x 480 | |
| Version | mit Touch-Funktion | |
| Viewing area (width) | 85.92 mm | |
| Viewing range (height) | 154.08 mm | |
| screen diagonal | 7"/17,8 cm | |
| Shell size | 164,9 x 100 x 7 mm | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Product type | TFT-Modul | |
| Technology | TN - Transmissive |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85249100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
