DEM 800480P1 TMX-PW-N | Display Elektronik
TFT-Modul DEM 800480P1 TMX-PW-N7,0"-TFT, 800xRGBx480, TN-transmissive,1000cd/m2,
Order No.: 73S0439
EAN: 4099891980047
MPN:
DEM 800480P1 TMX-PW-N
Unit Price (€ / pc.)
119.8211 € *
Available: 0 pcs.
Leadtime: 1 Week **

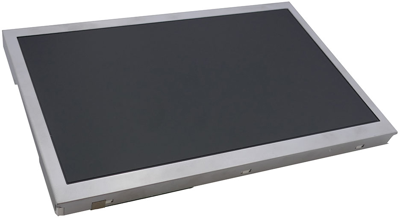

TFT Module, DEM 800480P1 TMX-PW-N, Display Elektronik
DEM 800480P1 TMX-PW-N is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module, a receiver circuit and a back-light unit. Graphics and texts can be displayed on a WVGA 800 (W) x RGB x 480 (H) dots (16:9 aspect ratio) with 262,144 colors.
Features
- TN (Twisted Nematic) mode
- Digital RGB (6bits/color) Data Transfer
- Data Enable Mode
- RoHS Compliant
Technical specifications
| Auflösung | 800 x 480 | |
| Ausführung | TFT-Modul | |
| Betrachtungsbereich (Breite) | 91.44 mm | |
| Betrachtungsbereich (Höhe) | 152.4 mm | |
| Bildschirm-Diagonale | 7"/17,8 cm | |
| Gehäusegröße | 166,6 x 109,4 x 9,65 mm | |
| max. Temperatur | 85 °C | |
| min. Temperatur | -30 °C | |
| Technologie | TN - Transmissive |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85249100 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
