DEM 800480W2 TMH-PW-N (A-TOUCH) | Display Elektronik

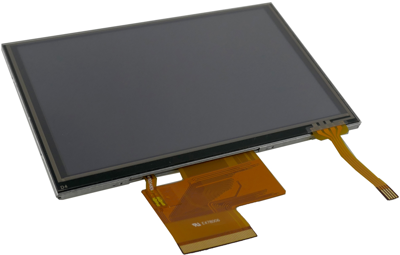

TFT module, 5"/12.7 cm, with touch function, 800 x 480, DEM 800480W2 TMH-PW-N (A-TOUCH)
Order No.: 73S0463
EAN: 4099891980283
MPN:
DEM 800480W2 TMH-PW-N (A-TOUCH)
Unit Price (€ / pc.)
31.1899 € *
Available: 0 pcs.
Leadtime: 1 Week **
TFT Module, DEM 800480W2 TMH-PW-N (A-TOUCH), Display Elektronik
The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver ICs and a backlight unit.
Technical specifications
| Product type | TFT-Modul | |
| Version | mit Touch-Funktion | |
| Resolution | 800 x 480 | |
| screen diagonal | 5"/12,7 cm | |
| Viewing range (height) | 108 mm | |
| Viewing area (width) | 64.8 mm | |
| Technology | TN - Transmissive | |
| Shell size | 120,7 x 75,8 x 4 mm | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85249100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
