EA DEMOPACK-CONNI | DISPLAY VISIONS

PCAP Demo: Interfaces, EA DEMOPACK-CONNI, DISPLAY VISIONS

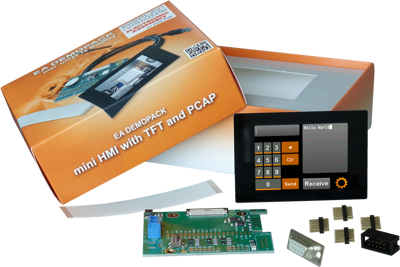

Demo application with several level shifter for RS-232 (±12V), RS-485, RS-422, SPI (5V), I²C (5V). With integrated voltage regulator for 5~30V (mispolarity safe). Incl. miniature touch panel (IPS, PCAP) 2.8" TFT with graphics functions, memory and touch panel support. Programmable as stand-alone with inputs and outputs. With USB, RS-232, I²C and SPI. Move objects on the display, change measured values while they are being displayed, automatically enlarge important parameters, show and hide controls gently. Easiest creation of screens via Windows using uniTFTDesigner. Includes touchpanel display EA uniTFTs028-ATC, application pcb, USB cable, FPC, pinheader.
